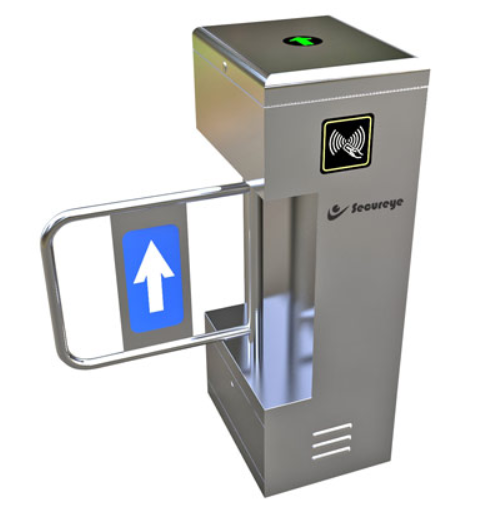

Swing Barrier Gate: S-SVB600

Description

• • Technical Specification
  • Outside Housing Material :304 stainless steel
  • Internal Structure Steel : frame structure
  • Open Angle : 90 Degree C
  • Power voltage : AC220 ± 10%, 50Hz
  • Drive Motor : DC motor 24V/40W
  • Relative humidity : ≦ 95%, None-condensation
  • Open direction : Single & Double (Optional)
  • Gate opening/closing time : 1 ~ 2 second
  • IP Degree : IP55
  • Length of the bar :1000mm
  • Pass speed: 30 ~ 40 Person / Minutes
  • Operation condition : -10oC ~ 60oC
• Barriers made from stainless steel, acrylic glass, etc; Mechanical Anti-Pinch structure enable the motor to stop working automatically in a given time if there is something on the way during reset and reset again after a default time delay
•  Automatic counting indicates the passenger’s number.
•  Human base model indication function, real-time displaying, improve the passing rate and convenient maintain
•  Anti-pinch function, barriers auto open when the power shut, insure user safety.
•  Break-in, tail,over-pass and reverse alert function in order to keep orderliness and effective manage
•  Super combination capacity, adjustable model on site
•  Barriers move speed auto adjust with card reader, problem self-recovery, error calls
• the function which could convenient users and operators
•  Turned up-coverage is water-proof and easy to maintain.
•  Open direction adjustable even though power off
